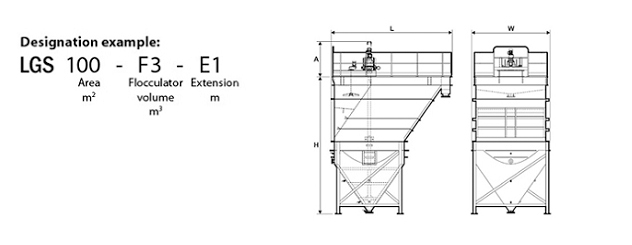

HydroLamella Settler
|
| |
Model LGS
|
| |
|
| |
Dimensions : |
| |
Model
|
H
|
L
|
W
|
A
max |
Total
volume |
Sludge
volume |
Flocculator
volume |
Weight
empty |
|
mm |
mm |
mm |
mm |
㎥ |
㎥ |
㎥ |
kg |
LGS 15 |
3,485 |
2,640 |
1,345 |
1,800 |
4.6 |
1.1 |
0.8 |
1,800 |
LGS 30 |
4,300 |
3,430 |
1,830 |
1,800 |
9.2 |
2.3 |
0.8 |
3,500 |
LGS 50 |
4,650 |
3,865 |
2,230 |
1,800 |
16.2 |
4.2 |
2.0 |
4,800 |
LGS 100 |
5,400 |
4,510 |
2,870 |
1,800 |
28.7 |
9.4 |
3.0 |
7,800 |
LGS 150 |
5,950 |
5,540 |
3,100 |
1,800 |
41.5 |
14.5 |
4.0 |
10,500 |
LGS 200 |
6,500 |
5,740 |
3,690 |
1,800 |
54.6 |
18.8 |
5.0 |
13,200 |
LGS 350 |
8,100 |
6,910 |
4,500 |
2,000 |
105.8 |
47.8 |
7.0 |
24,300 |
LGS 500 |
8,630 |
7,810 |
5,780 |
2,000 |
160.8 |
72.8 |
8.0 |
39,500 |
|
| |
Area = Total projected lamella plate area.
Weight including standard drive unit with lifting device and with flocculator agitator. |
| |
|
| |

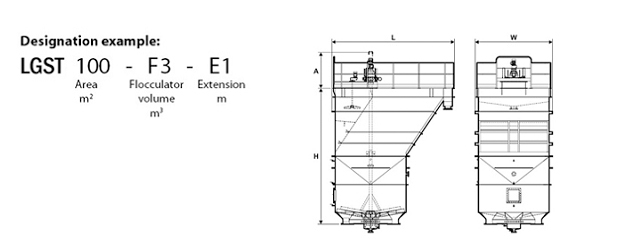

Model LGST |
| |
 |
| |
Model
|
H
|
L
|
W
|
A
max |
Total
volume |
Sludge
volume |
Flocculator
volume |
Weight
empty |
|
mm |
mm |
mm |
mm |
㎥ |
㎥ |
㎥ |
kg |
LGST 15 |
3,485 |
2,640 |
1,345 |
1,800 |
4.6 |
1.1 |
0.8 |
1,800 |
LGST 30 |
4,300 |
3,430 |
1,830 |
1,800 |
9.2 |
2.3 |
0.8 |
3,500 |
LGST 50 |
4,650 |
3,865 |
2,230 |
1,800 |
16.2 |
4.2 |
2.0 |
4,800 |
LGST 100 |
5,400 |
4,510 |
2,870 |
1,800 |
28.7 |
9.4 |
3.0 |
7,800 |
LGST 150 |
5,950 |
5,540 |
3,100 |
1,800 |
41.5 |
14.5 |
4.0 |
10,500 |
LGST 200 |
6,500 |
5,740 |
3,690 |
1,800 |
54.6 |
18.8 |
5.0 |
13,200 |
LGST 350 |
8,100 |
6,910 |
4,500 |
2,000 |
105.8 |
47.8 |
7.0 |
24,300 |
LGST 500 |
8,630 |
7,810 |
5,780 |
2,000 |
160.8 |
72.8 |
8.0 |
39,500 |
|
| |
Area = Total projected lamella plate area.
Weight including standard drive unit with lifting device and with flocculator agitator. |
| |
|
| |
| |
|
|
|
 |
|
